Tonto

Enabling streamlining of hygienic hospital waste disposal

Project Description: R&D, Pharmafilter BV

Role: Design Engineer

Time: 2014/15

Skill Highlights: Rotation Moulding, Thermoforming, Design for Manufacturing and Maintenance, Lighting, Sheet Metal

What is it?

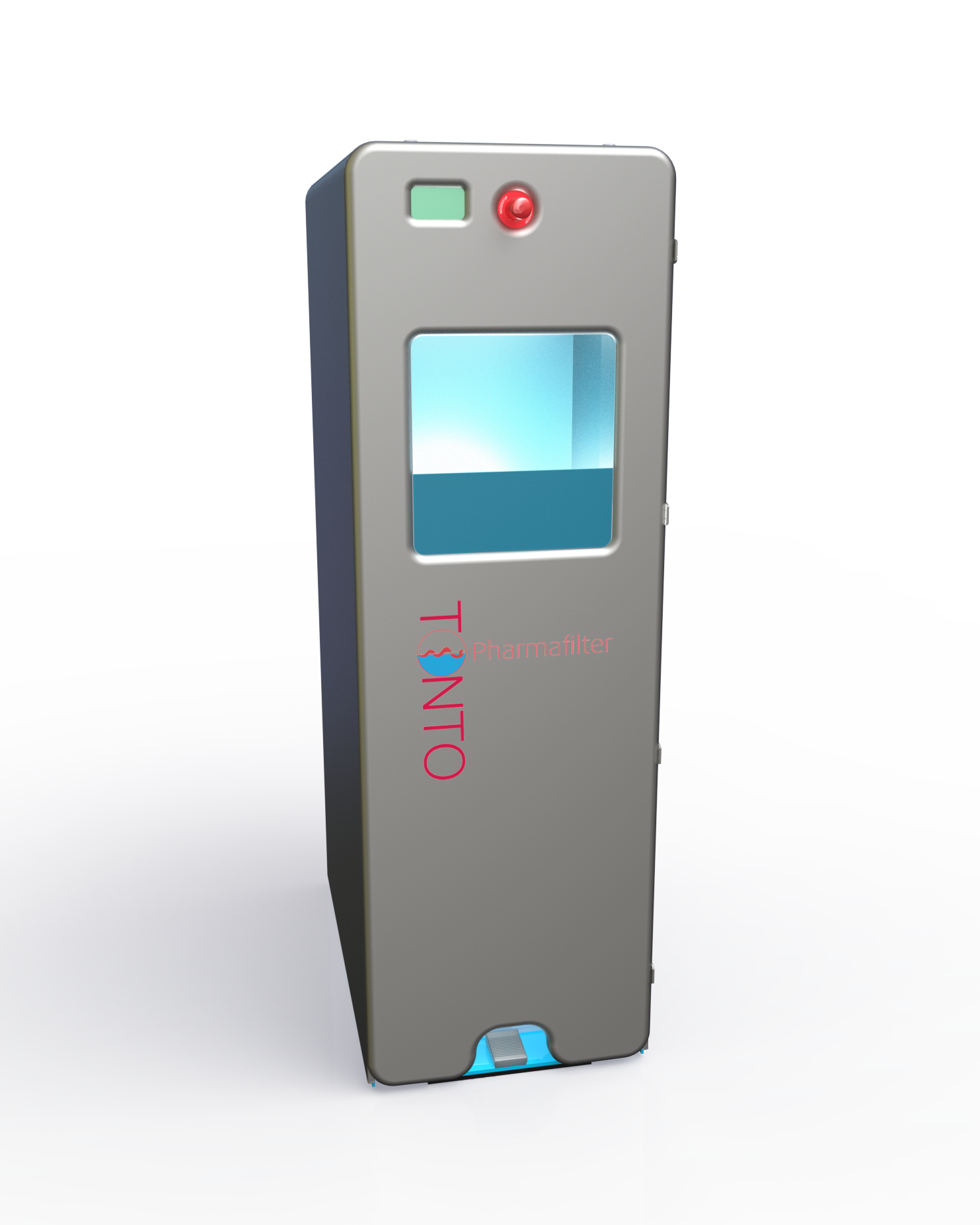

The Tonto is a hospital waste shredder, which is designed to be the entry point of all healthcare wastes at the different wards of the hospital. The shredded content travels through the existing sewage to the Pharmafilter waste treatment plant.

The Tonto is Portuguese for ‘simpleton’, representing the simplicity of the usage.

.

Certain project details are confidential.

Here, I will highlight my responsibilities in this project and give some examples of the designed components.

My main responsibilities included:

The design of components for light, water, air and mixing modules based on insights gathered from experts, past designs and usage testing.
The select and contact of suppliers for rotation moulding and thermoforming and worked with these suppliers to optimize design for manufacturability.
Ensured prototypes made in sheet metal correspond with the plastic versions of the final design.

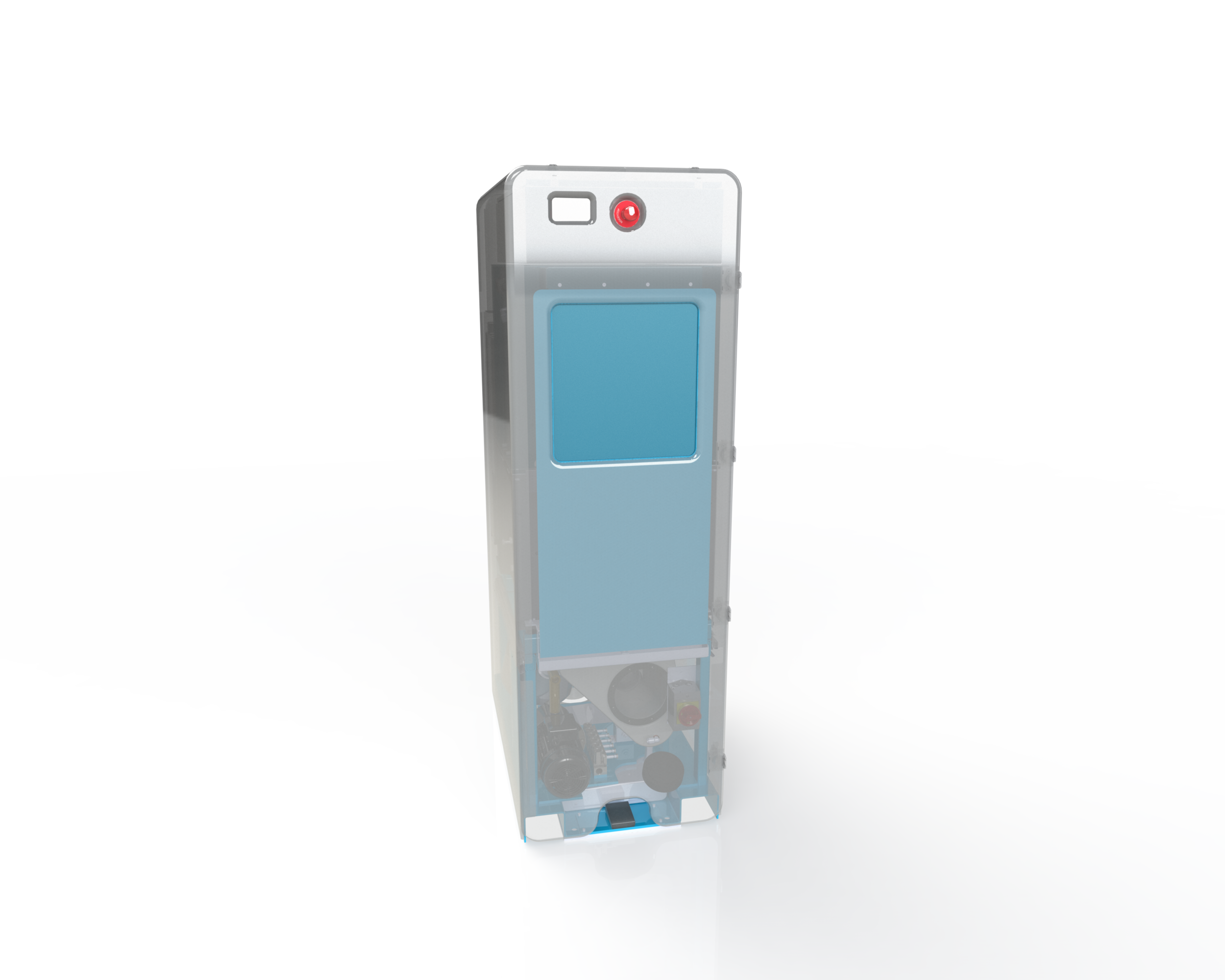

transparent casing_small-01.png

exit pipe

Function:

Component for receiving and transporting the air, water and mixed waste contents to the sewage.

Production Method:

Rotation Molding

Sheet Metal Prototype (Copy)

Rotation Molding (Copy)

Assembled production batch (Copy)

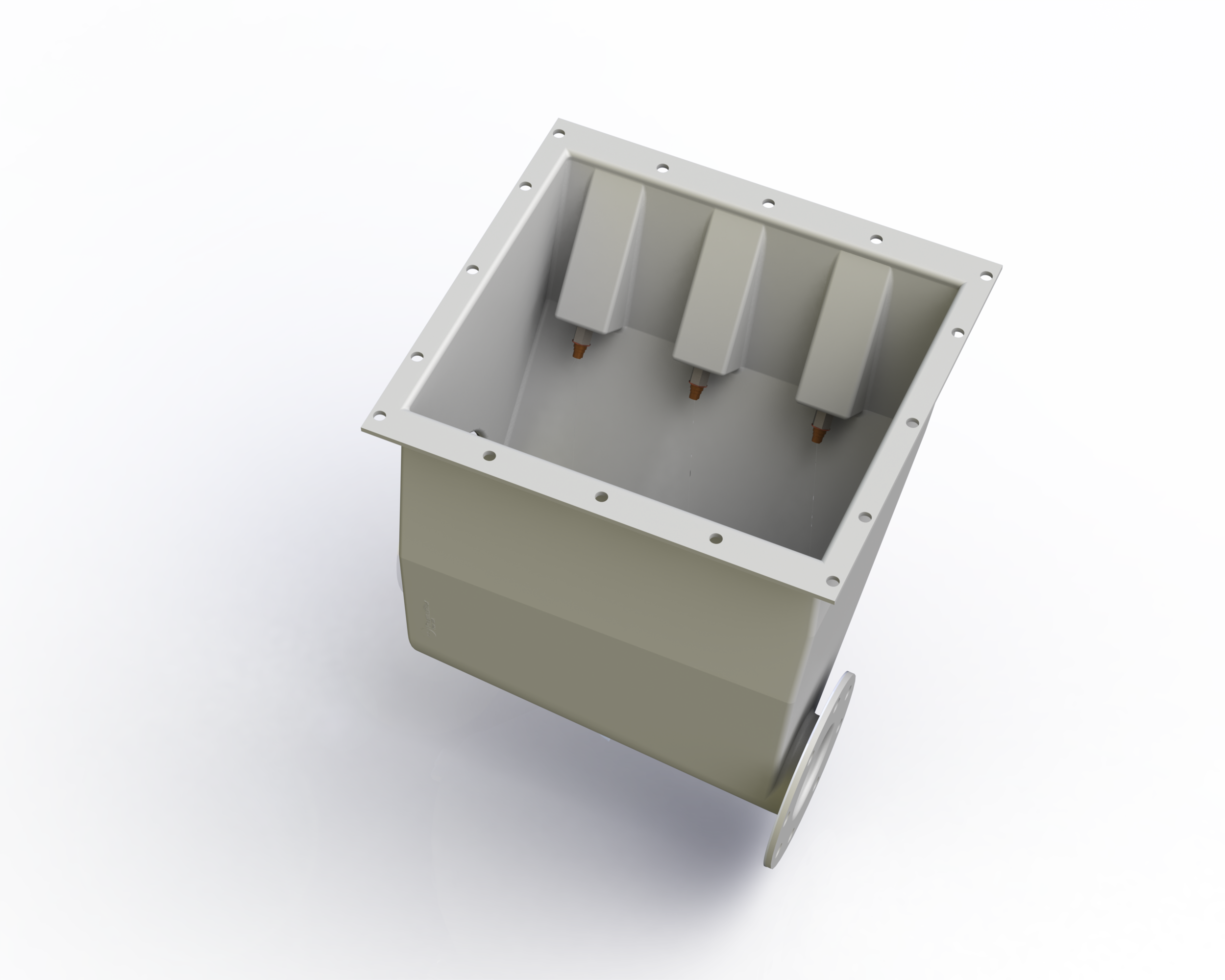

Hopper

hopper

Function:

Container for mixing shredded waste with water before transporting the waste to the sewage

Production Method:

Rotation Moulding

Sheet Metal Prototype (Copy)

First Rotation Molded Parts (Copy)

Final Production Model Installed (Copy)

Water Tank

watertank

Function:

Collects and stores water from water source for use in flushing, mixing and cleaning

Production Method:

Rotation Moulding

Sheet Metal Prototype (Copy)

Plastic Prototype (Copy)

Final Production Part (Copy)

Internal Ceiling

Function:

Component for fitting and directing cleaning nozzles, and lights for the main compartment

Production Method:

Thermoforming

Sheet Metal Prototype Ceiling (Copy)

First Iteration of Lighting (Copy)

Prototype - Non-intended Reflections (Copy)

Trial With Different Lighting Designs (Copy)

Final Internal Ceiling Lighting Design (Copy)

Detergent Tank

detergent tank.png

Function:

Detergent container for Hydrogen Peroxide for disinfecting the main compartment

Production Method:

Rotation Moulding

Stainless Steel Prototype (Copy)

First Rotation Molded Parts (Copy)

Assembled Production Batch (Copy)

All contents relating to the Tonto are properties of Pharmafilter B.V.
